How to Install Winfit on Customer's Computer

Step-by-Step Installation Instructions

1. Ensure Windows is Up to Date

   • Confirm that the client’s computer has the latest updates installed. This will prevent compatibility issues during installation.

2. Verify Windows Settings

   • Open Settings on the client’s computer and ensure the following configurations:

     • Windows Language: Set to English (United States)

     • Country or Region: Set to United States

     • Regional Format: Set to English (United States)

3. Download the Winfit Installer

   • Access the download link: tinyurl.com/winfit-new

   • Download the installer to the client’s computer.

4. Run the Installer

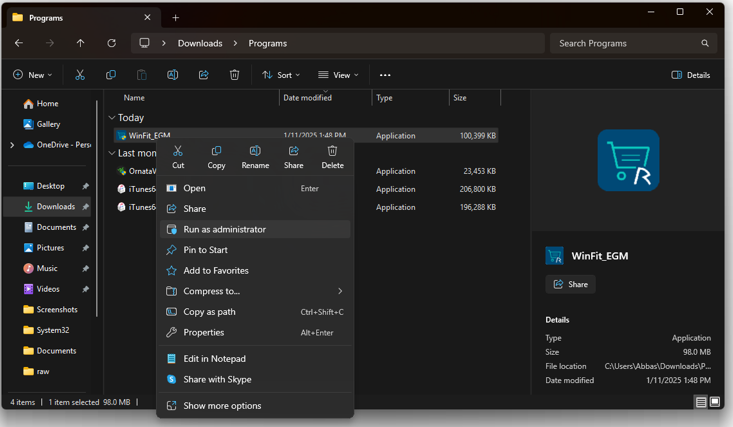

   • Locate the downloaded file, Winfit.exe, and run it as an Administrator.

     • Note: Some client computers may require IT assistance to enter the administrator password.

1. Installation Process

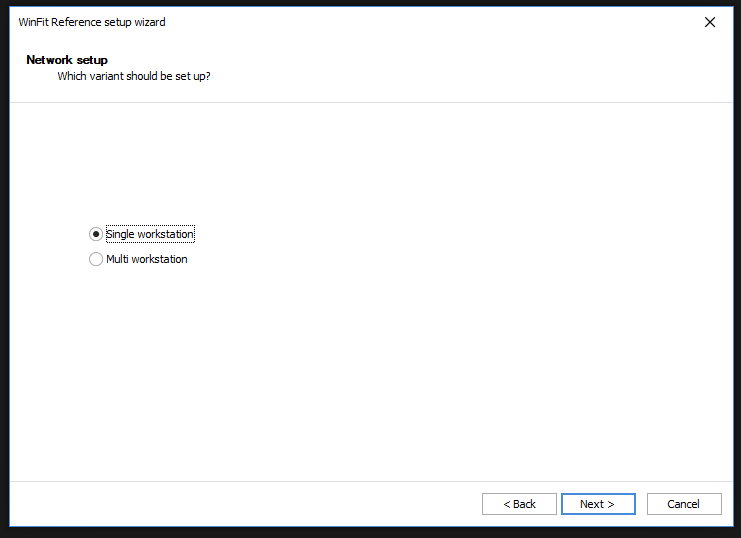

   • During the installation process, when prompted, select Single Workstation in the second window.



2. .NET Framework Installation

   • If prompted to install the .NET Framework, follow the on-screen instructions to complete the installation.

     • Restart the computer if required.

   • After restarting, run Winfit Reference.exe from the desktop to continue the installation.

   • Important:

     • For older versions of Windows 10 or Windows 7, you may need to manually install .NET Framework 4.8 as the new Winfit software does not support Windows 7 Service Pack 1.

3. Update Winfit

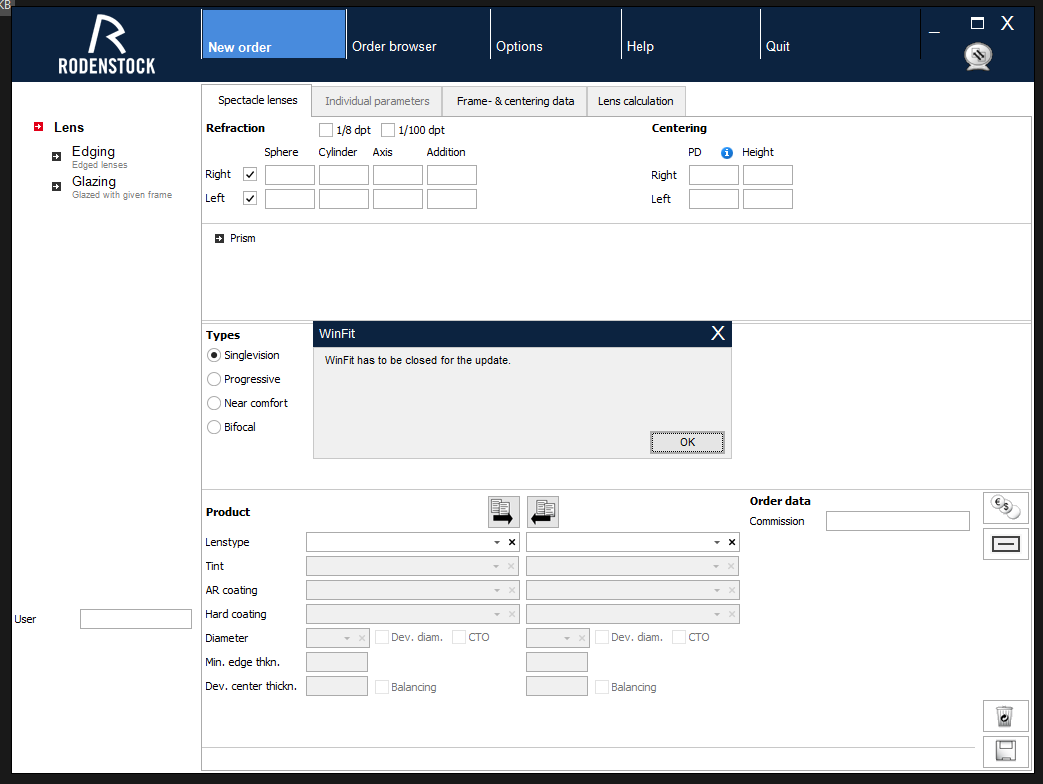

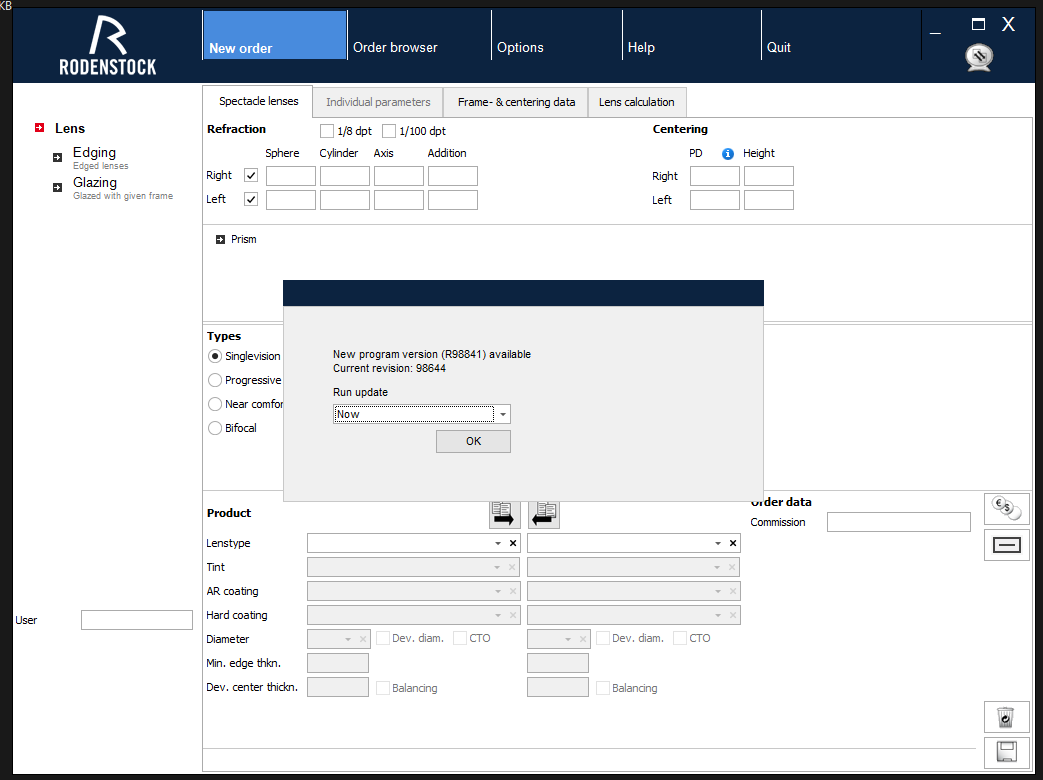

   • After the initial installation, Winfit may prompt for an update.

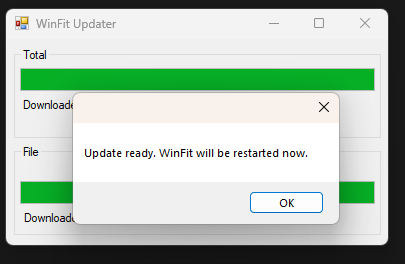

   • Complete the update process and allow the software to restart.




4. Configure Winfit Settings

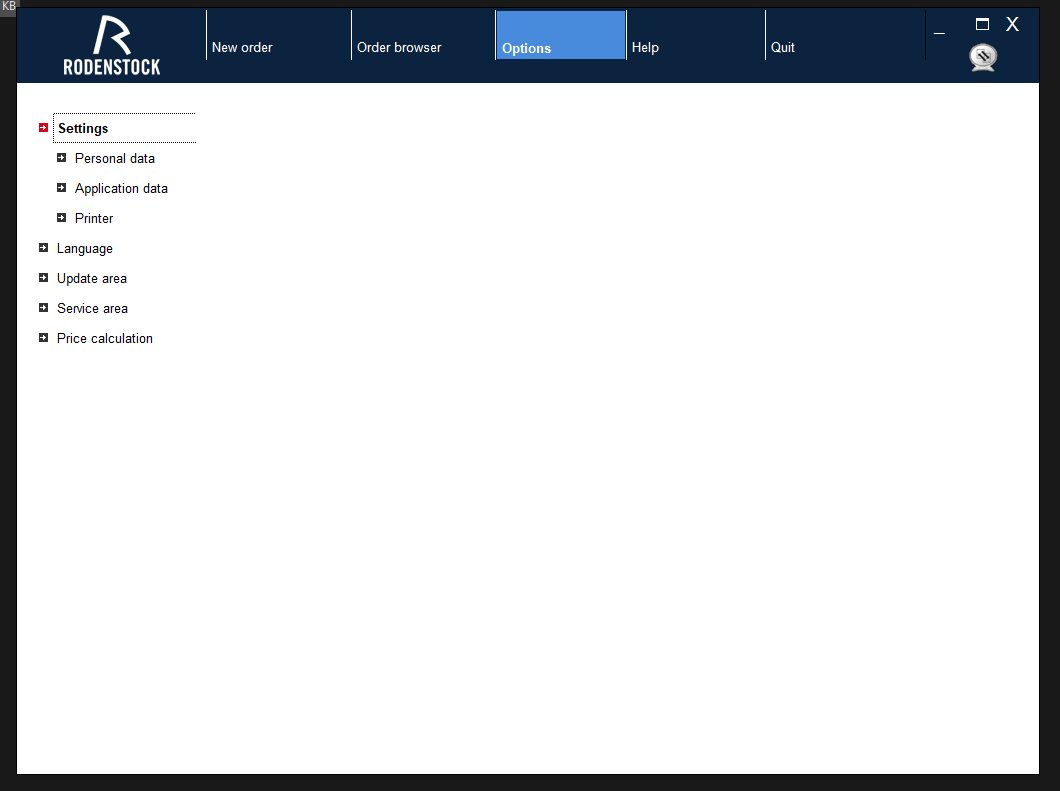

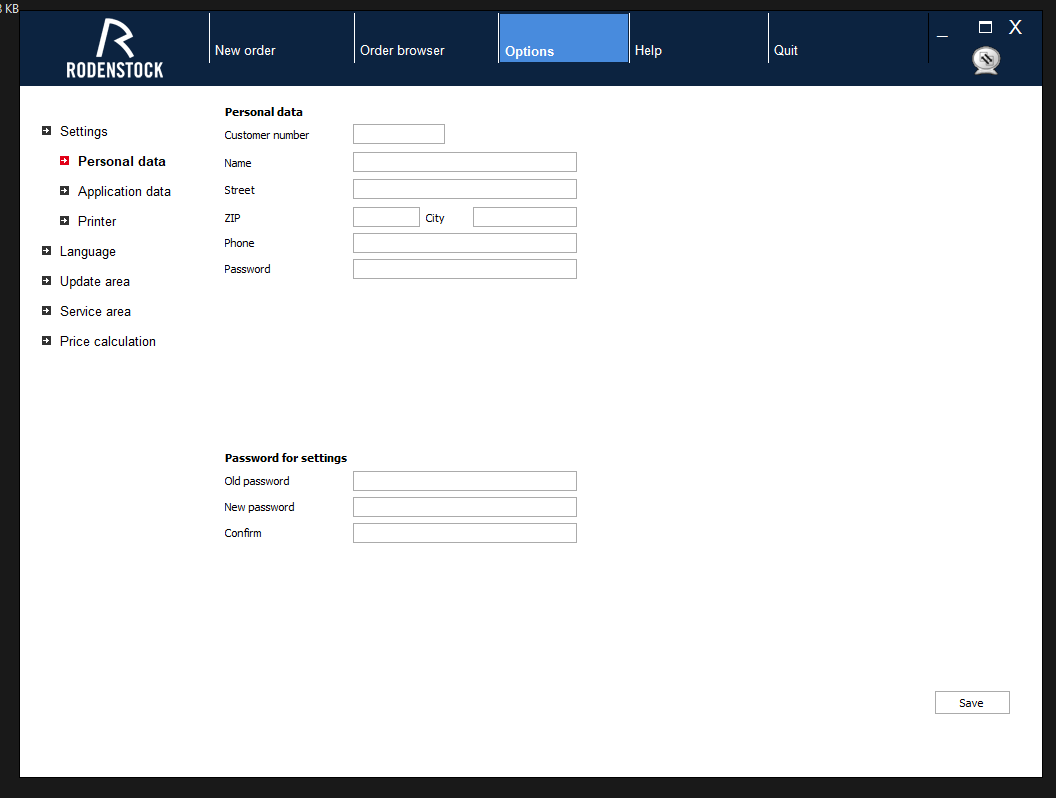

   • Once Winfit is installed, open the software and navigate to:

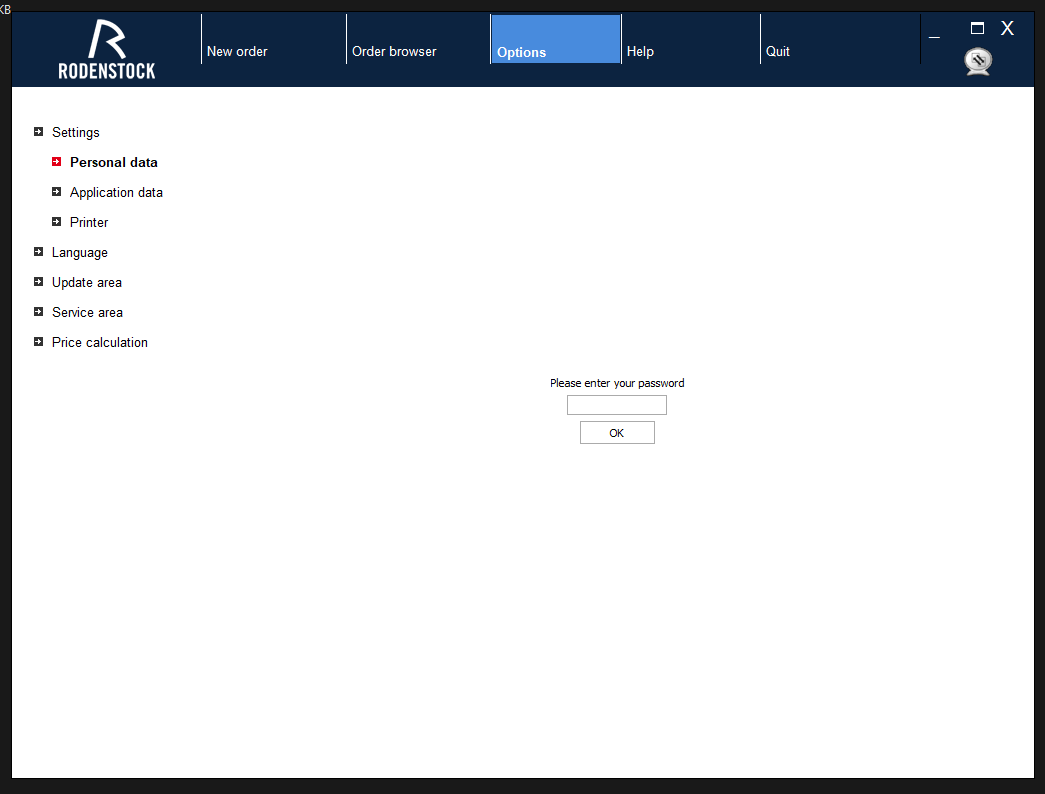

     • Options > Settings > Personal Data




   • Enter the password: winfit (all lowercase).



   • Input the customer’s number and password.

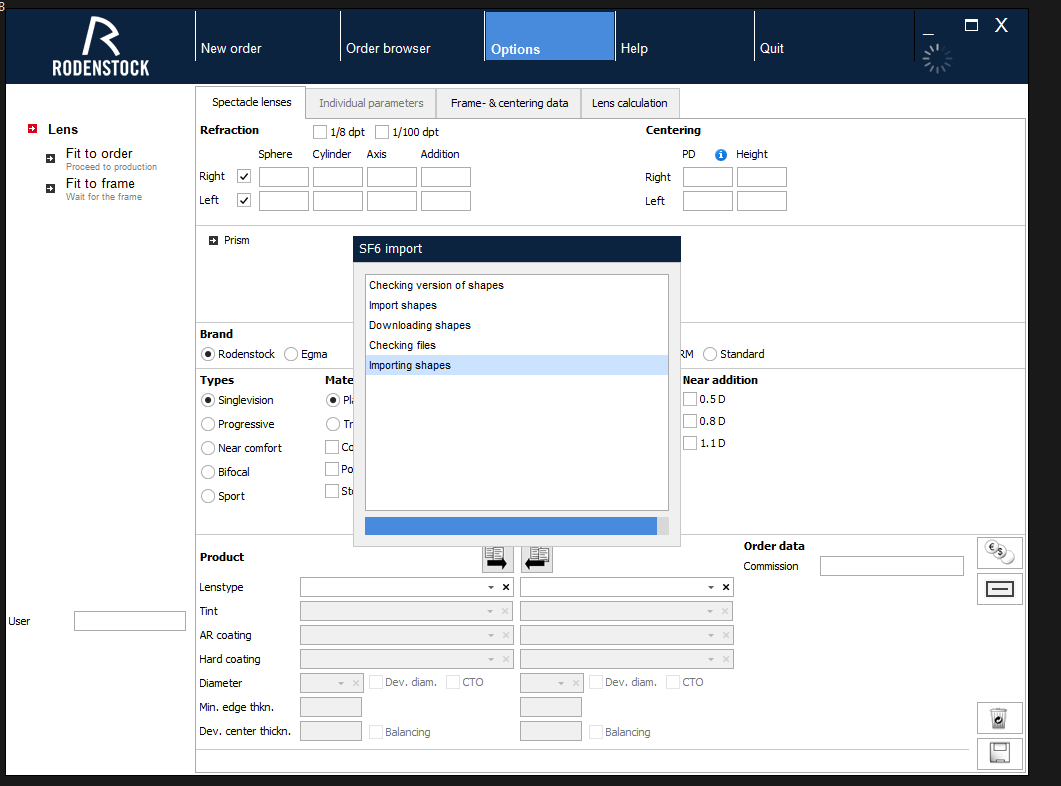

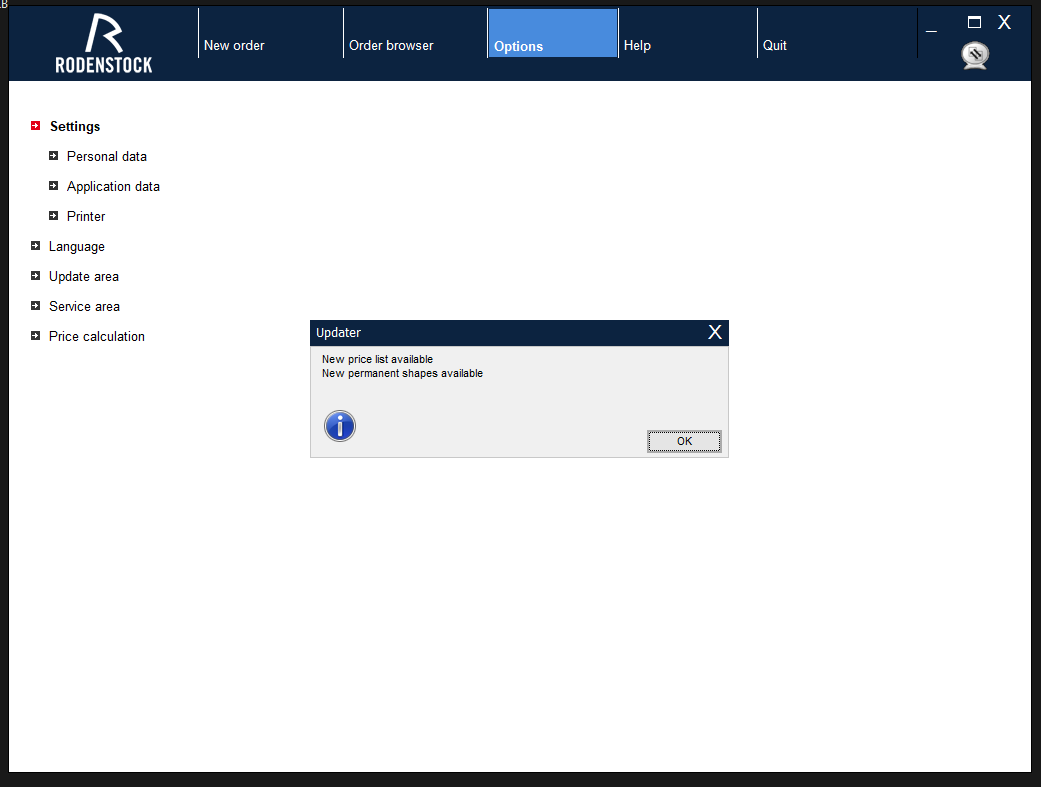

• Once you enter customer number and password, if all the settings are correct including regional settings then you will have this prompt



Pre-Installation Checklist

• Customer Credentials:

  • Request the customer’s password, Shape Management information, and other requirements at least 1 hour before visiting the client.

• System Requirements:

  • RAM Considerations:

    • Customers with 4GB RAM will have access to limited shapes.

    • Full shape functionality is available only for systems with 8GB RAM or more.

Additional Notes

• Support Limitations:

  • We do not provide technical support for fixing customer’s computer hardware issues, including keyboards, mice, or other Windows-related problems.

• Informing Customers:

  • Inform customers with 4GB RAM about the shape limitations to avoid misunderstandings if they contact another branch for additional shapes.

Post-Installation Steps

1. Ensure Winfit is functioning properly.

2. Provide the customer with a brief walkthrough of the software’s basic functionality.

3. Confirm that the customer can log in with their credentials.

By following this guide, you can ensure a smooth and efficient installation process for Winfit, minimizing issues and maximizing customer satisfaction.
